WATER PREPARATION
Purified water systems
MC-PW series with process options including RO + EDI, RO + RO and RO + EDI + UF.
PHARMACEUTICAL FLUID SYSTEMS · YANGZHOU, CHINA
Process systems
built around your plant.
From purified water and pure steam to formulation and distribution, Mocheng brings process design, equipment and lifecycle support together for pharmaceutical manufacturing.
Designed for process requirements, site conditions and validation needs.
PHARMACEUTICAL WATER SYSTEMS
Purified water
preparation Concept visualization · Equipment configuration varies by project.
SCROLL TO EXPLORE↓
preparation Concept visualization · Equipment configuration varies by project.
One partner across the fluid system lifecycle
01Process
engineering
engineering
02Equipment
manufacturing
manufacturing
03Commissioning
& validation
& validation
04Maintenance
& service
& service
EQUIPMENT & INTEGRATED SYSTEMS
Utilities that keep
production moving.
Select a system to start a conversation. Mocheng develops process configurations around required water quality, capacity, operating mode and the realities of your facility.
WATER FOR INJECTION
Multi-effect distillers
MWLD series equipment, with brochure-listed model capacities from 500 to 8,000 L/h.
PURE STEAM
Pure steam generators
MC-PS series for pharmaceutical sterilization processes, with automated operation and monitoring.
STORAGE & DISTRIBUTION
Loop systems
Hot, ambient or cold recirculation, with monitoring and disinfection options selected for the project.
FORMULATION
Automatic preparation
Recipe-based batching with automated dosing, mixing, transfer, cleaning and sterilization sequences.
OZONE & SANITIZATION
Ozone generation
HB-ZS and HB-HMG series for water treatment and disinfection applications.
ALSO AVAILABLE
Online SIP/CIP systems · Heat exchangers · Fluid system cleaning and derouging · Annual maintenance
↗PRODUCT RANGE & ENGINEERING DETAILS
More than a
product list.
A closer look at the equipment families, process choices and technical ranges described in the company brochure. Final specifications are confirmed against each project brief.
MC-PW · WATER PREPARATION
Purified water process options
Configurations described include RO + EDI, RO + RO, RO + RO + EDI and RO + EDI + UF, selected around feed-water conditions and required outlet quality.
- Raw-water pretreatment can include mechanical filtration, activated carbon and softening.
- Brochure design features include dual softeners, recirculating supply loops and automated pasteurization.
- Control functions include trend displays, alarms, operating records and automated CIP sequences.
MC-MWLD · WATER FOR INJECTION
Multi-effect distiller capacities
Models and nominal capacities listed in the brochure:
MC-MWLD500-5 500 L/hMC-MWLD800-5 800 L/hMC-MWLD1000-5 / -6 1,000 L/hMC-MWLD2000-5 / -6 2,000 L/hMC-MWLD3000-6 · 4000-6 3,000–4,000 L/hMC-MWLD5000-6 · 6000-6 · 8000-6 5,000–8,000 L/h
Model availability and utility loads require project confirmation.MC-PS · PURE STEAM
Generation and operating range
The brochure describes a three-stage separation design and Siemens S7-based controls for automated operation and monitoring.
- Listed outlet pressure range: 2–5 bar.
- Brochure-stated full-load start-up: under 30 seconds.
- Temperature and pressure fluctuation: ±5% as stated in the brochure.
- Designed for sterilization duties; applicable standards and condensate requirements must be verified for the project.
FORMULATION · VESSELS & AUTOMATION
Batch preparation systems
Applications named include large- and small-volume parenterals, lyophilized injections, eye drops and oral liquids, including aqueous and oily formulations.
- Brochure vessel range: 5 L to 20,000 L.
- Automated production, cleaning and sterilization sequences.
- 316L pharmaceutical vessel fabrication; electropolished finish listed up to Ra ≤0.25 μm for specified tanks.
- Orbital/automatic welding and weld inspection options are described; scope is project-specific.
HEAT EXCHANGERS · PROCESS INTEGRATION
Pharmaceutical heat transfer
Double-tube-sheet exchanger information in the brochure includes:
- Heat-transfer area range: 0.1–20 m².
- 316L seamless product-contact tubes.
- Cleanable design intended to reduce dead legs and cross-contamination risk.
- Electropolished surface finish listed below Ra 0.5 μm; SIP-compatible configurations are described.
Spiral-coil models are also presented for compact heating and cooling duties. Selection depends on media, flow and design conditions.
HB · OZONE & DISINFECTION
Equipment families and applications
The brochure presents HB-ZS water-cooled ozone generators with listed model outputs from 10 to 800 g/h, plus HB-HMG low-temperature/humidity units and MC-FZG vacuum ozone disinfection equipment.
- Applications include pharmaceutical water treatment, clean areas, filling-line and equipment disinfection.
- Other named sectors include biotechnology, food production, electronics and general water treatment.
- Output, concentration, site integration and safety requirements must be confirmed for the intended use.
Technical figures above are transcribed from the supplied company brochure and are indicative, not a binding quotation. Confirm current model codes, utilities, materials, standards, finishes and performance with Mocheng before specification or purchase.
ENGINEERED FOR THE SITEFLUID PROCESS INSTALLATION
FROM PROCESS BRIEF TO START-UP
Consider the whole
system.
A process utility performs as a connected system. We work across water treatment, vessels, pipework, controls and operating procedures to shape a solution around the project.
01
Process designCapacity, water quality, flow paths and site layout
↗02
Fabrication & controlsEquipment, instrumentation and automated sequences
↗03
Installation & qualificationCommissioning and documentation support for project teams
↗04
Service & improvementMaintenance, cleaning, derouging and system upgrades
↗PROJECT SUPPORT
Designed with
qualification in mind.
Documentation and verification planning are part of the engineering conversation, helping your team prepare for the project’s own quality and validation requirements.
Define the basis
Align on process intent, applicable standards, operating ranges and project boundaries.
USER REQUIREMENTSReview the design
Develop equipment and control concepts with documented design inputs and review points.
DESIGN REVIEWBuild & test
Plan manufacturing checks, factory testing and handover records to match the agreed scope.
FAT · DOCUMENTATIONCommission & qualify
Support site start-up and qualification activities such as IQ/OQ as defined for the project.
SITE · IQ/OQ SUPPORTFinal compliance scope, deliverables and qualification responsibilities are agreed for each project.
FIELD SERVICE & PROJECT RECORD
Support for the
working plant.
The brochure documents fluid-system cleaning, derouging and equipment maintenance alongside customer-site installations. The views below are presented without customer names.
SYSTEM CLEANING & DEROUGING
Before and after
system cleaning.
The brochure includes two cleaning comparisons. Results depend on the condition and materials of each system.

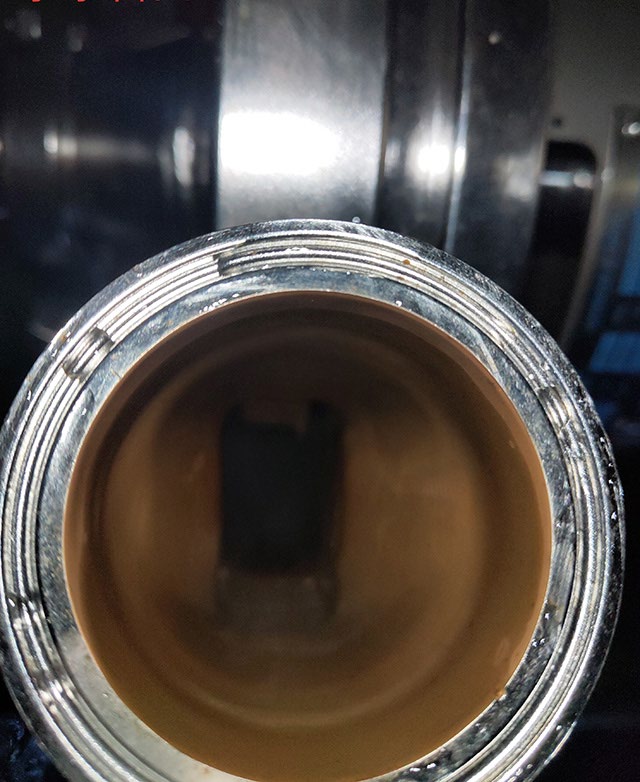

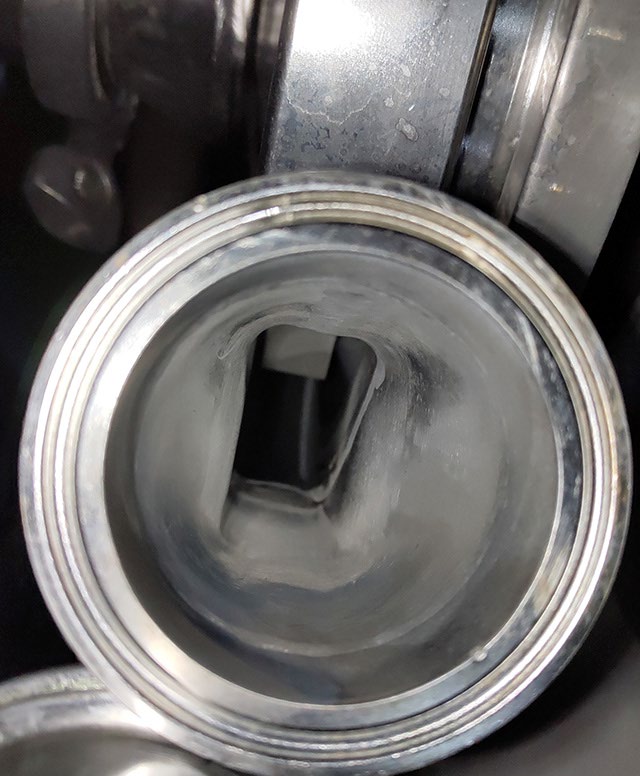

Purified-water pump outlet

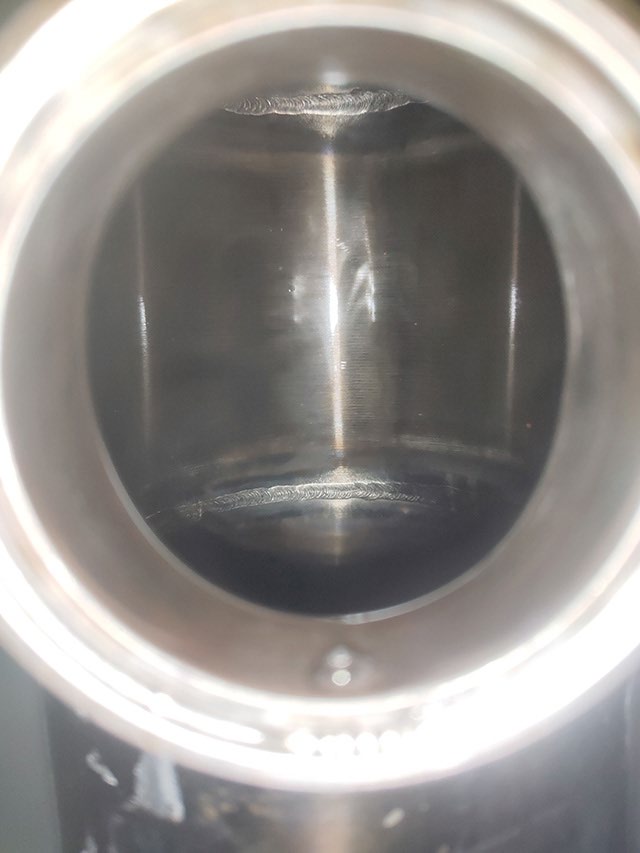

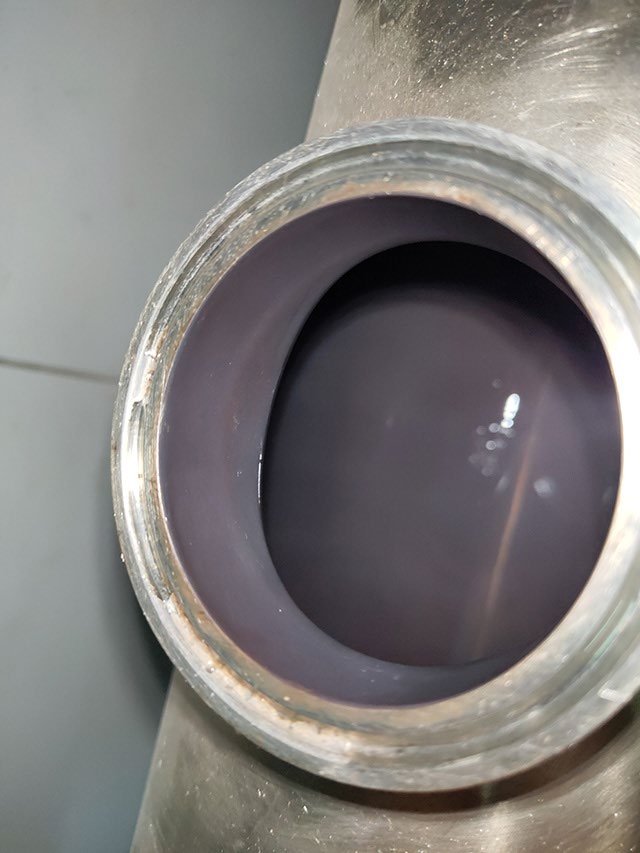

Pure-steam buffer line
FLUID SYSTEM SERVICES
Cleaning and derouging · CIP/SIP support · Annual maintenance · Troubleshooting and system improvement
↗ABOUT YANGZHOU MOCHENG
Fluid systems.
Field experience.
Founded by engineers and specialists with experience in pharmaceutical, pharmaceutical equipment and energy-saving environmental sectors, Yangzhou Mocheng Fluid Technology Co., Ltd. designs, manufactures and services fluid process systems.
The company brochure describes a nationwide sales and service network in China and exports overseas, with engineering, manufacturing and after-sales teams supporting customer projects.
Meet us on your next projectYANGZHOUMCFLUID TECHNOLOGY
Built around process and place.Equipment · Integration · Service
START A PROJECT CONVERSATION
Tell us what
your plant needs.
Share the system type, target capacity, water quality or project stage. Our team can follow up with the right technical questions.
